Electrical Panel Wiring & Installation
Can Dallas Homeowners Save Money When Installing Or Wiring A Electrical Panel
Installing electrical panels and wiring requires extreme care and skill, as working with electricity can lead to deadly consequences for inexperienced individuals. The cost of installing electrical wiring or panels depends on the scope of the project as well as whether any problems are encountered while doing the work.
If you’re updating an older home or putting on an addition, a new electrical panel and wiring may be needed to bring the house up to code.
How to Wire An Electrical Panel
To install the electrical panel, you must first knock out the knockouts to install the feeder pipe. Install the connector into the panel and install a lock-nut to hold it in place. If you’re using metal pipe, place a plastic bushing over the connector threads.
Using a fish tape, pull the electrical feeder wires through the feeder pipe. Leave enough wire to get to the opposite side of the panel. That way, there will be plenty of wire to make the connection anywhere in the electric panel.

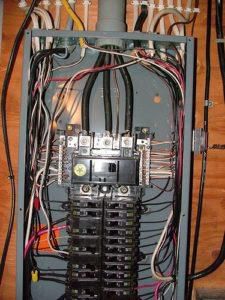

Bend the two black wires to shape them for easy installation to the main breaker. In this photo, the main breaker is located at the top right of the panel. Strip the wire only enough to make the connection to the main breaker terminal lugs.
Connect the neutral wire to the neutral buss. The neutral buss is located on either side of the breakers. It is a silver-colored bar with many smaller screws and connection points. It also has a larger hole for the feeder neutral wire. The neutral wire is the wire marked with the white phasing tape.
To install branch circuit wires, use a fish tape to pull in the wires. If you are installing NM wiring, install NM connectors to the electrical panel and secure the wires with the two screws on the straps. Strip the outer sheathing to expose the conductors.
Connect all of the green and bare copper wires to the ground buss bar. Connect the white neutral wires to the neutral buss. If you bend the wires ahead of time, you’ll have a nice, neat wire installation that looks uniform.
Next, install the circuit feeds to the branch circuit breakers. The black and red wires are the feeder wires in this photo with the black wires being one of the hot feeds and the red wires being the other. Connect the appropriate sized wire to the correctly rated breaker. Bend the wires so that they keep a neat appearance when the installation is complete.
Electric Panel: Safety Installation Tips
Very early homes still have old fuse style panels, these panels require the home owner to change fuses when they get overloaded and blow. This creates issues because the home owner may not have the proper fuse and may put in a fuse that is too large. Or the home owner may not have a spare fuse at all leaving the circuit off until one can be purchased.
